Thép Không Gỉ Xi Lanh Nhỏ MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

Thép Không Gỉ Xi Lanh Nhỏ MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

Thương hiệu:
Giá bán:  Liên hệ
Thép Không Gỉ Xi Lanh Nhỏ MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

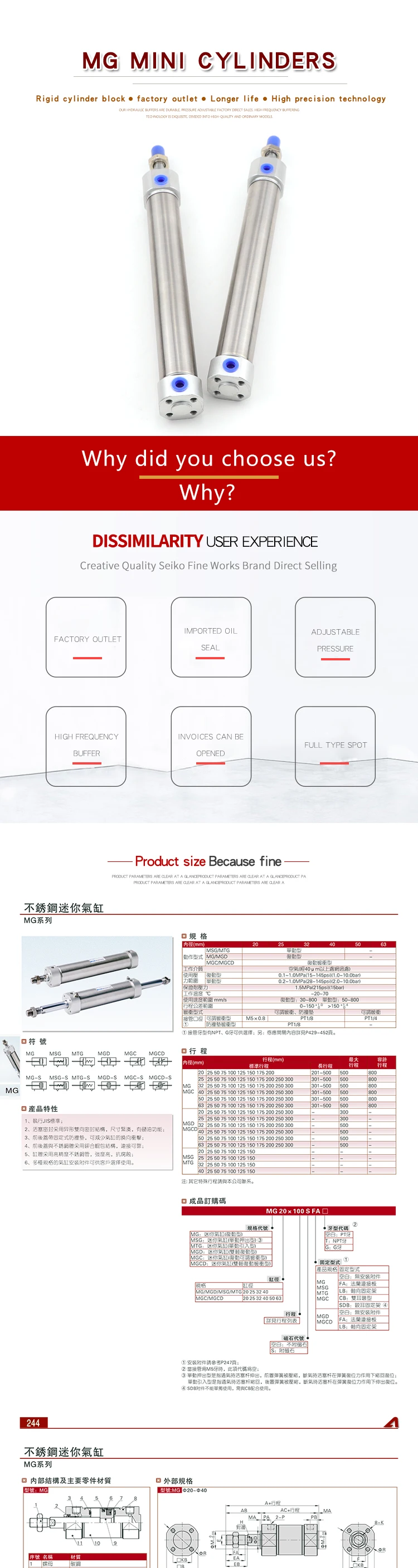

Stainless Steel Mini Cylinder MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

Product Description



Bore size 20 25 32 40 50 63
Acting type MSG/MTG Single acting ---
MG/MGD Double acting ---
MGC/MGCD Double acting with cushion
Fluid Airlto be fitered by 40 μ m filter element)
Operating pressure Double acting 0.1~1.0MPa(15~ 145psi)(1.0~10.0bar)
Single acting 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature °C -20~70
Speed range mm/s Double acting: 30~800 Single acting: 50~800
Stroke tolerance 0~150  >150
Cushion type Adjustable cushion Bumper Adjustable cushion
Port size Adjustable cushion M5x0.8 1/8" 1/4"
Bumper 1/8* ---

PT thread, NPT thread and G thread are available.

Thép Không Gỉ Xi Lanh Nhỏ MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

Stainless Steel Mini Cylinder MG20-25/50/75/100/150/200/250/300 - S - FA MG20-25 MG20-50 MG20-75 MG20-100 MG20-125 MG20-150

Product Description



Bore size 20 25 32 40 50 63
Acting type MSG/MTG Single acting ---
MG/MGD Double acting ---
MGC/MGCD Double acting with cushion
Fluid Airlto be fitered by 40 μ m filter element)
Operating pressure Double acting 0.1~1.0MPa(15~ 145psi)(1.0~10.0bar)
Single acting 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature °C -20~70
Speed range mm/s Double acting: 30~800 Single acting: 50~800
Stroke tolerance 0~150  >150
Cushion type Adjustable cushion Bumper Adjustable cushion
Port size Adjustable cushion M5x0.8 1/8" 1/4"
Bumper 1/8* ---

PT thread, NPT thread and G thread are available.
